In the field of electronics, soldering is one of the basic processes for connecting electronic components. In the soldering process, the solder used plays a vital role. Among them, Tin Solder Paste is a common and widely used soldering material, which plays an indispensable role in the electronics industry. This article will introduce in detail the definition, composition, application fields of Tin Solder Paste and its importance in electronic soldering.
Tin Solder Paste is a soldering material with tin as the main component, usually mixed with other alloying elements or flux. It exists in a paste or semi-solid form and has a certain viscosity and plasticity, making it easy to apply and operate on the soldering surface. The main component of Solder Paste is tin (Sn), which is usually alloyed with lead (Pb), silver (Ag) and other elements to adjust its soldering performance and characteristics.
Tin Paste usually consists of the following main components:
Tin (Sn): As the main component, it provides the basic material for soldering. Pure tin or tin alloys containing small amounts of other metals are often used in the preparation of Tin Paste.
Lead (Pb): Often mixed with tin to form solder, which improves the plasticity and wettability of soldering and makes soldering easier.
Silver (Ag): used to alloy Solder Paste to improve its electrical conductivity and mechanical strength, especially where high-reliability soldering connections are required.
Flux: The function of flux in Tin Solder Paste is to promote wetting of the soldering surface, remove oxides, reduce bubbles and impurities during soldering, and improve soldering quality and reliability. Common fluxes include resins, activators, etc.
The common lead free tin paste types are: tin paste SAC305 Sn96.5Ag3.0Cu0.5, tin paste SAC0307 Sn99Ag0.3Cu0.7, tin paste SAC07 Sn99.3Cu0.7 and tin paste Sn42Bi58; While the common leaded solder paste types are: tin paste 63 37 Sn63Pb37, tin paste 60 40 Sn60Pb40 and tin paste Sn62Pb36Ag2
Tin Paste is widely used in soldering processes in the electronics industry, mainly including the following aspects:

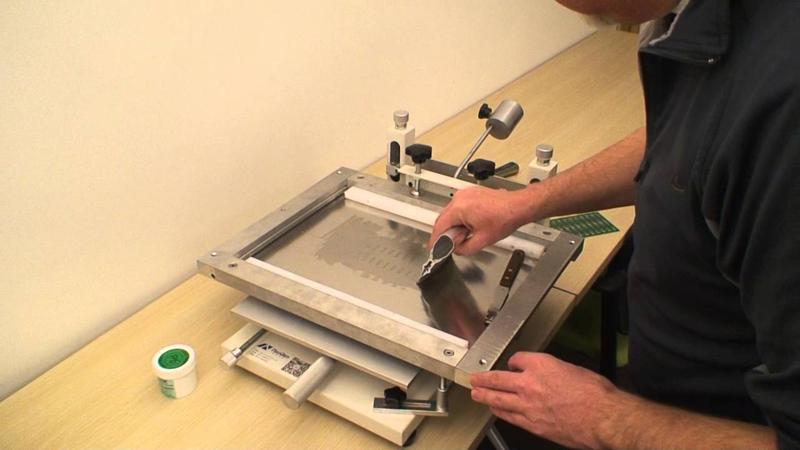

Surface mount technology (SMT): SMT is an important technology in modern electronic manufacturing. Solder Paste is used in the SMT process to weld surface mount components (such as chips, resistors, capacitors, etc.) to PCB (Printed Circuit Board, printed circuit board).
Soldering Iron: For hand soldering or low-volume production, a soldering iron is a commonly used tool. Soldering irons often use solder cores, which are solder wires containing Tin Paste, and are used to solder electronic components to circuit boards.
Ball Grid Array (BGA): BGA is a high-density packaging technology. Tin Paste is used to solder the solder balls of the BGA chip and the PCB to ensure reliable electrical and mechanical connections.
Reflow soldering: Reflow soldering is a commonly used soldering process. By controlling the heating temperature and time, the Solder Paste applied on the PCB melts and connects the soldering components, and then cools and solidifies to form solder joints.
Solder Paste plays a vital role in electronic soldering, mainly reflected in the following aspects:
Plasticity and wettability: The added ingredients of Tin Paste, such as lead, silver, etc., make it have good plasticity and wettability, and can form a uniform and strong soldering connection on the soldering surface.
Conductive properties: The alloying components of Tin Solder Paste, such as the addition of silver, improve the conductive properties of solder joints and help ensure the stable operation of electronic equipment.
Reliability: By controlling the soldering process parameters and selecting the appropriate Solder Paste formula, high-reliability soldering connections can be achieved and the quality and life of electronic products can be improved.
Adaptability: it is suitable for various soldering scenarios, from manual soldering to automated production lines, and can meet different needs.
To sum up, Tin Solder Paste, as an important soldering material, plays a key role in electronic soldering. It can not only achieve high-quality soldering connections, but also improve the performance and reliability of electronic products and promote the development and progress of the electronics industry.
