Solder Bar (63% Tin 37% Lead) for PCB Wave Soldering from China

Solder Bar (63% Tin 37% Lead) for PCB Wave Soldering from China

For PCB assembly in today’s fast-paced electronics industry, the solder material used plays a critical role in determining product reliability and performance. One of the most trusted and widely utilized options for wave soldering is the 63% tin, 37% lead (63/37) solder bar. This eutectic alloy, with its unique properties and robust performance, has become the go-to solution for high-quality solder joints in wave soldering applications. Here’s a closer look at why solder bars 63% tin and 37% lead are ideally suited for PCB wave soldering and how they benefit electronics manufacturers.



Key Benefits of Solder Bars (63% Tin and 37% Lead) in Wave Soldering

1. Eutectic Composition for Optimal Temperature Control: The 63/37 tin-lead solder bar is a eutectic alloy, meaning it has a single, fixed melting point of 183°C (361.4°F), rather than a range. This unique feature enables the solder to transition directly from solid to liquid at a consistent temperature, which is crucial in wave soldering. The fixed melting point minimizes the risk of cold joints, as the solder solidifies quickly and uniformly, forming a clean and reliable connection. For PCB manufacturers, this reduces the likelihood of incomplete or weak joints, ensuring that each board meets quality standards.



2. Enhanced Wetting and Flow for Strong Bonds: Wave soldering requires the solder to flow smoothly over PCB pads and through holes to create complete, robust connections. The solder bar 63% tin offers excellent wetting properties, enabling it to spread effectively over the surfaces of both component leads and PCB pads. This superior wetting capability results in fewer gaps or voids in the solder joints, which can compromise performance. With consistent wetting, manufacturers can achieve a seamless flow that ensures a strong, uniform bond across all connections on the board.



3. High Electrical Conductivity and Mechanical Strength: The balanced composition of 63% tin and 37% lead of solder bar provides an ideal mix of electrical conductivity and mechanical strength. Tin contributes high conductivity, essential for maintaining signal integrity across PCB components, while lead enhances the solder’s mechanical resilience. This alloy’s strength is especially beneficial in applications subject to regular vibrations, temperature fluctuations, or physical stress, ensuring connections that remain durable over time. In wave soldering, where solder joints are exposed to intense thermal changes, 63/37 solder bars help secure components, even in demanding environments.



4. Minimizes Common Defects in Mass Production: In high-volume PCB manufacturing, minimizing defects such as bridging, non-wetting, and cold joints is essential. The eutectic nature of older bars (63% tin 37% lead) significantly reduces the occurrence of these issues by allowing rapid solidification with consistent flow during wave soldering. This characteristic translates into fewer errors, improved yields, and reduced rework, leading to greater efficiency and lower costs. As a result, manufacturers can streamline their wave soldering process, achieving cleaner, more reliable boards with less need for post-solder inspection and rework.



5. Wide Compatibility with Wave Soldering Equipment and Processes: Another reason why 63/37 solder bars are so well-suited for wave soldering is their compatibility with traditional soldering equipment. This solder can be used without special modifications or changes to preheat or soldering temperatures, making it versatile and easy to integrate into most wave soldering setups. With a smooth and consistent melting process, 63/37 solder bars offer predictable performance, simplifying equipment calibration and reducing the need for complex adjustments.

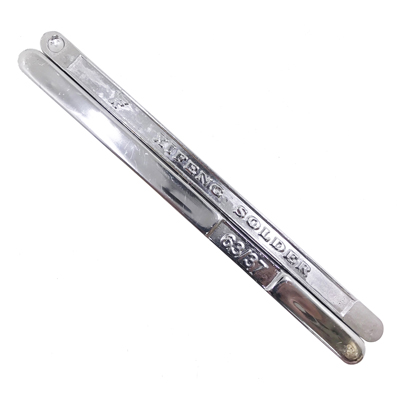

China solder bar 63% tin 37% lead

Why Solder Bar (63% tin & 37% lead) is Ideal for PCB Wave Soldering?

Wave soldering is a high-speed process where molten solder is applied to the underside of the PCB, bonding components securely to the board. This process is ideal for through-hole components and mixed-technology PCBs, but it demands a solder material that can flow consistently and solidify quickly to prevent defects. The eutectic composition of the 63% tin 37% lead solder bar is uniquely suited to meet these requirements:



Consistent Solidification: With a single melting point, the solder solidifies without a transition phase, reducing the risk of forming cold joints or bridges between connections.

Smooth Flow: The tin-lead alloy composition ensures smooth solder flow across pads and through holes, forming strong, defect-free joints that maintain conductivity and mechanical integrity.

Temperature Stability: The 183°C melting point allows wave soldering systems to operate at standard temperatures without requiring extensive adjustments, creating a stable, controlled environment for high-speed production.



Practical Applications for 63/37 Solder Bars in PCB Assembly

The solder bar (63% tin and 37% lead) is widely used across industries where PCB assemblies must be reliable and high-performing, the manufacturing method of wave soldering provides possibility of effective production. Key applications include:



Consumer Electronics: Devices such as smartphones, tablets, and laptops rely on secure, durable solder joints to ensure product longevity and functionality.

Automotive Electronics: Automotive PCBs must withstand vibrations, thermal cycling, and humidity, making the mechanical strength and stability of 63/37 solder essential for safety and reliability.

Industrial Equipment and Aerospace: PCB assemblies used in industrial machinery and aerospace require high-resilience solder that can perform under challenging conditions, where 63/37 solder excels.

solder bar for wave soldering

Conclusion

For manufacturers seeking a reliable, efficient, and high-quality solution for PCB wave soldering, the 63/37 tin-lead solder bar is an outstanding choice. Its eutectic composition, excellent wetting and flow properties, and high electrical conductivity make it exceptionally well-suited for wave soldering. By minimizing defects, enhancing durability, and ensuring strong connections, 63/37 solder bars allow for higher yields, reduced rework, and consistent quality in PCB assembly processes. This alloy is the ideal solution for achieving the durability, precision, and performance required in modern electronics manufacturing.



If you are looking for Solder Bar (63% Tin 37% Lead) for PCB Wave Soldering from China, please contact us.
